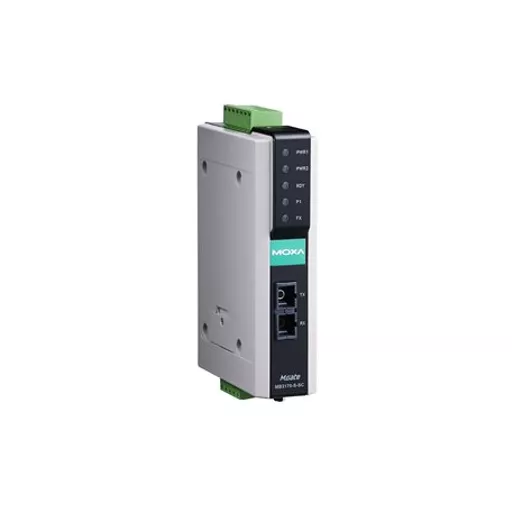

MGate MB3170I-S-SC



MGate MB3170I-S-SC

Was €630.50 Save 6% €592.67  Ex VAT Was €788.13 Save 6% €740.84  Inc VAT

PRE-ORDER

- +

This product is currently out of stock. Your item will be shipped when it is back in stock.

DELIVERY CUTOFF TIME REMAINING:

- - : - - : - -


Advanced 1-Port Modbus Gateway with 100BaseFX Single-Mode Fiber & Optical Isolation

Streamline your Modbus networking with this high-performance 1-port Modbus gateway, engineered for industrial automation environments that demand reliable, secure, and flexible communication. Equipped with a 100BaseFX single-mode fiber port and 2 kV optical isolation, this gateway ensures stable data exchange even in electrically noisy environments. Ideal for integrating Modbus TCP and Modbus RTU/ASCII devices, it supports broad compatibility, robust features, and a wide operating temperature range.

Key Features & Benefits

  • Seamless Network Integration: Supports Auto Device Routing for hassle-free configuration and deployment.
  • Flexible Communication: Route data by TCP port or IP address to meet diverse network requirements.
  • High Compatibility: Connects up to 32 Modbus TCP servers and 31 or 62 Modbus RTU/ASCII slave devices.
  • Multi-Client Access: Supports up to 32 Modbus TCP clients, retaining 32 Modbus requests per master.
  • Dual Serial Functionality: Enables Modbus serial master-to-slave communication for greater versatility.
  • Streamlined Wiring: Features built-in Ethernet cascading to simplify installation and expansion.
  • Fiber Optic Connectivity: Single-mode SC fiber port provides fast, interference-resistant communication.
  • Status Monitoring: Embedded Modbus traffic analytics help diagnose and resolve issues quickly.
  • Wide Temperature Range: Reliable operation from -40 to 75°C (optional model) for harsh industrial environments.
  • Power Redundancy: Dual DC inputs and 1 relay output ensure maximum uptime and system reliability.
  • Enhanced Protection: Serial port offers 2 kV isolation (in “-I” models) for robust electrical protection.
  • QoS Control: Emergency request tunnels maintain high service quality during critical data transfers.

Ideal for Industrial Communication

This advanced Modbus gateway is the perfect solution for integrating legacy Modbus devices into modern industrial Ethernet networks. With support for both Modbus TCP/IP and Modbus RTU/ASCII over fiber, it is an essential tool for SCADA systems, factory automation, and process control in demanding environments.

Support your industrial protocols with confidence using a gateway built for performance, durability, and intelligent network management.

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2 (1 IP, Ethernet cascade)
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Optical Fiber

    • 100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features

  • Industrial Protocols

    • Modbus TCP Client (Master)
      Modbus TCP Server (Slave)

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Device Search Utility (DSU)
      MGate Manager
      MCC Tool
      Telnet Console

  • Management

    • ARP
      DHCP Client
      DNS
      HTTP
      HTTPS
      SMTP
      SNMP Trap
      SNMPv1/v2c/v3
      TCP/IP
      Telnet
      UDP
      NTP Client

  • MIB

    • RFC1213, RFC1317

  • Time Management

    • NTP Client
Security Functions

  • Authentication

    • Local database

  • Encryption

    • HTTPS
      AES-128
      AES-256
      SHA-256

  • Security Protocols

    • SNMPv3
      HTTPS (TLS 1.2)
Serial Interface

  • No. of Ports

    • 1

  • Connector

    • DB9 male for RS-232 and terminal block for RS-422/485

  • Serial Standards

    • RS-232/422/485 (software selectable)

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Parity

    • None
      Even
      Odd
      Space
      Mark

  • Stop Bits

    • 1, 2

  • Flow Control

    • DTR/DSR
      RTS Toggle (RS-232 only)
      RTS/CTS

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • Isolation

    • 2 kV

  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features

  • Industrial Protocols

    • Modbus RTU/ASCII Master
      Modbus RTU/ASCII Slave
Modbus (Transparent)

  • Max. No. of Client Connections

    • 32

  • Max. No. of Server Connections

    • 32
Power Parameters

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • 555 mA @ 12 VDC

  • Power Connector

    • 7-pin terminal block
Relays

  • Contact Current Rating

    • Resistive load: 1 A @ 30 VDC
Physical Characteristics

  • Housing

    • Plastic

  • IP Rating

    • IP30

  • Dimensions (with ears)

    • 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

  • Dimensions (without ears)

    • 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)

  • Weight

    • 360 g (0.79 lb)
Environmental Limits

  • Operating Temperature

    • 0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Hazardous Locations

    • ATEX
      Class I Division 2
      IECEx

  • Maritime

    • DNV

  • Freefall

    • IEC 60068-2-32

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64

  • Safety

    • UL 60950-1
      IEC 60950-1
      EN 62368-1
      UL 508
MTBF

  • Time

    • 1,385,414 hrs

  • Standards

    • Telcordia SR332
Warranty
Download datasheet
