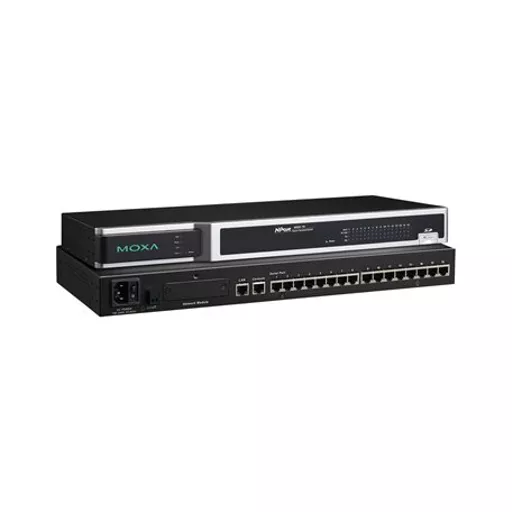

Memory

• SD Slot

  • Up to 32 GB (SD 2.0 compatible)

Input/Output Interface

• Alarm Contact Channels

  • Resistive load: 1 A @ 24 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)

  • 1
    Auto MDI/MDI-X connection

• Magnetic Isolation Protection

  • 1.5 kV (built-in)

• Compatible Modules

  • NM Series expansion modules for optional extension of RJ45 and fiber Ethernet ports

• Optical Fiber

  • Read more

    		100BaseFX
    		Multi-Mode		Single-Mode
    Fiber Cable Type		OM1	50/125 µm	G.652
    			800 MHz x km
    Typical Distance		4 km	5 km	40 km
    Wavelength	Typical (nm)	1300		1310
    	TX Range (nm)	1260 to 1360		1280 to 1340
    	RX Range (nm)	1100 to 1600		1100 to 1600
    Optical Power	TX Range (dBm)	-10 to -20		0 to -5
    	RX Range (dBm)	-3 to -32		-3 to -34
    	Link Budget (dB)	12		29
    	Dispersion Penalty (dB)	3		1
    Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

• Configuration Options

  • Web Console (HTTP/HTTPS)
    Windows Utility
    Device Search Utility (DSU)
    MCC Tool
    Serial Console
    Telnet/SSH Console

• Management

  • ARP
    BOOTP
    DHCP Client
    DNS
    HTTP
    ICMP
    IPv4/IPv6
    LLDP
    PPPOE
    SMTP
    SNMPv1/v2c/v3
    SNTP
    TCP/IP
    Telnet
    UDP

• Windows Real COM Drivers

  • Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
    Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
    Windows Embedded CE 6.0/5.0, Windows XP Embedded

• Linux Real TTY Drivers

  • Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

• Fixed TTY Drivers

  • macOS Versions: 11.x, 10.12 to 10.15

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

• Arm®-based Platform Support

  • Linux Kernel 5.x/4.x

• Virtual Machine

  • VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 10.12 to 11.x)
    Parallels Desktop (Windows on macOS 10.12 to 11.x)

• Android API

  • Android 3.1.x and later

• MIB

  • MIB-II

• Time Management

  • SNTP Client

• Unicast Routing

  • RIPV1/V2
    Static Route

Security Functions

• Authentication

  • Local database
    RADIUS
    TACACS+

• Encryption

  • HTTPS
    AES-128
    AES-256
    HMAC
    RSA-1024
    SHA-1
    SHA-256
    SHA-384

• Security Protocols

  • HTTPS (TLS 1.2)
    SNMPv3
    SSHv2

Serial Interface

• Connector

  • 8-pin RJ45

• No. of Ports

  • 16

• Serial Standards

  • RS-232
    RS-422
    RS-485

• Secure Operation Modes

  • Reverse SSH
    Secure Pair Connection
    Secure Real COM
    Secure TCP Client
    Secure TCP Server
    SSH

• Standard Operation Modes

  • Disabled
    Ethernet Modem
    Pair Connection
    PPP
    Printer
    Real COM
    Reverse Telnet
    RFC2217
    TCP Client
    TCP Server
    Terminal
    UDP

• Baudrate

  • 50 bps to 921.6 kbps (supports non-standard baudrates)

• Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

• Data Bits

  • 5, 6, 7, 8

• Stop Bits

  • 1, 1.5, 2

• Parity

  • None
    Even
    Odd
    Space
    Mark

• Flow Control

  • RTS/CTS
    DTR/DSR
    XON/XOFF

• Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

• RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

• Terminator for RS-485

  • 120 ohms

Serial Signals

• RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w

  • Data+, Data-, GND

Power Parameters

• Input Current

  • 192 mA @ 100 VAC

• Input Voltage

  • 100 to 240 VAC, 47 to 63 Hz

Reliability

• Automatic Reboot Trigger

  • Built-in WDT

• Alert Tools

  • Built-in buzzer and RTC (real-time clock)

Physical Characteristics

• Housing

  • Metal

• Installation

  • Rack mounting

• Dimensions (with ears)

  • 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)

• Dimensions (without ears)

  • 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)

• Weight

  • 3580 g (7.89 lb)

Environmental Limits

• Operating Temperature

  • -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  • -40 to 75°C (-40 to 167°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

• Safety

  • UL 60950-1

• Traffic Control

  • NEMA TS2

• Vibration

  • IEC 60068-2-6

• Freefall

  • IEC 60068-2-34

Declaration

• Green Product

  • RoHS, CRoHS, WEEE

MTBF

• Time

  • 439,673 hrs

• Standards

  • Telcordia (Bellcore) Standard

Warranty

• Warranty Period

  • 5 years

• Details

  • www.moxa.com/warranty
