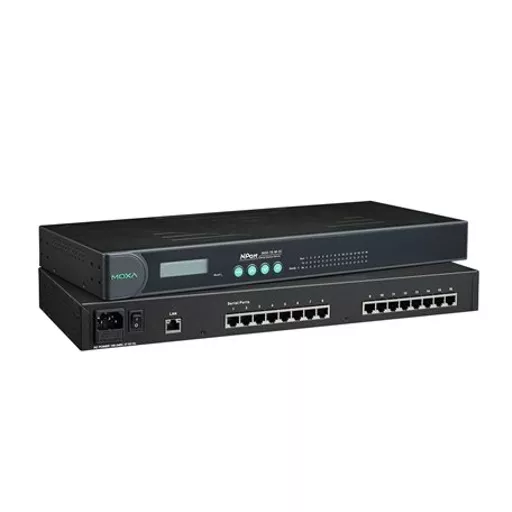

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)

  • 1

• Magnetic Isolation Protection

  • 1.5 kV (built-in)

• Optical Fiber

  • Read more

    		100BaseFX
    		Multi-Mode		Single-Mode
    Fiber Cable Type		OM1	50/125 µm	G.652
    			800 MHz x km
    Typical Distance		4 km	5 km	40 km
    Wavelength	Typical (nm)	1300		1310
    	TX Range (nm)	1260 to 1360		1280 to 1340
    	RX Range (nm)	1100 to 1600		1100 to 1600
    Optical Power	TX Range (dBm)	-10 to -20		0 to -5
    	RX Range (dBm)	-3 to -32		-3 to -34
    	Link Budget (dB)	12		29
    	Dispersion Penalty (dB)	3		1
    Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

• Configuration Options

  • Telnet Console
    Web Console (HTTP/HTTPS)
    Windows Utility

• Management

  • ARP
    BOOTP
    DHCP Client
    DNS
    HTTP
    HTTPS
    ICMP
    IPv4
    LLDP
    RFC2217
    Rtelnet
    PPP
    SLIP
    SMTP
    SNMPv1/v2c
    TCP/IP
    Telnet
    UDP

• Filter

  • IGMP v1/v2c

• Windows Real COM Drivers

  • Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
    Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
    Windows Embedded CE 6.0/5.0, Windows XP Embedded

• Linux Real TTY Drivers

  • Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

• Fixed TTY Drivers

  • macOS Versions: 11.x, 10.12 to 10.15


• Arm®-based Platform Support

  • Linux Kernel 5.x/4.x


• Virtual Machine

  • VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 10.12 to 11.x)
    Parallels Desktop (Windows on macOS 10.12 to 11.x)

• Android API

  • Android 3.1.x and later

• Time Management

  • SNTP

Security Functions

• Authentication

  • Local database

• Encryption

  • HTTPS
    AES-128
    RSA-1024
    SHA-1
    SHA-256

• Security Protocols

  • HTTPS (TLS 1.2)
    SNMPv3

Serial Interface

• Connector

  • 8-pin RJ45

• No. of Ports

  • 16

• Serial Standards

  • RS-232
    RS-422
    RS-485

• Operation Modes

  • Disabled
    Ethernet Modem
    Pair Connection
    Real COM
    Reverse Telnet
    RFC2217
    TCP Client
    TCP Server
    UDP

• Baudrate

  • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

• Data Bits

  • 5, 6, 7, 8

• Stop Bits

  • 1, 1.5, 2

• Parity

  • None, Even, Odd, Space, Mark

• Flow Control

  • None
    RTS/CTS (RS-232 only)
    DTR/DSR (RS-232 only)
    XON/XOFF

• Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

• Terminator for RS-485

  • 120 ohms

• RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

Serial Signals

• RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w

  • Data+, Data-, GND

Power Parameters

• Input Current

  • 174 mA @ 100 VAC

• Input Voltage

  • 100 to 240 VAC, 47 to 63 Hz

Reliability

• Automatic Reboot Trigger

  • Built-in WDT

Physical Characteristics

• Housing

  • Metal

• Installation

  • 19-inch rack mounting

• Dimensions (with ears)

  • 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)

• Dimensions (without ears)

  • 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)

• Weight

  • 2,440 g (5.38 lb)

• Interactive Interface

  • LCD panel display
    Push buttons for configuration

Environmental Limits

• Operating Temperature

  • 0 to 60°C (32 to 140°F)

• Storage Temperature (package included)

  • -20 to 70°C (-4 to 158°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

• Safety

  • UL 62368-1

• Medical

  • EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
    EN 60601-1-2: 2007 compliant

MTBF

• Time

  • 517,019 hrs

• Standards

  • MIL-HDBK-217F

Warranty

• Warranty Period

  • 5 years

• Details

  • See www.moxa.com/warranty
