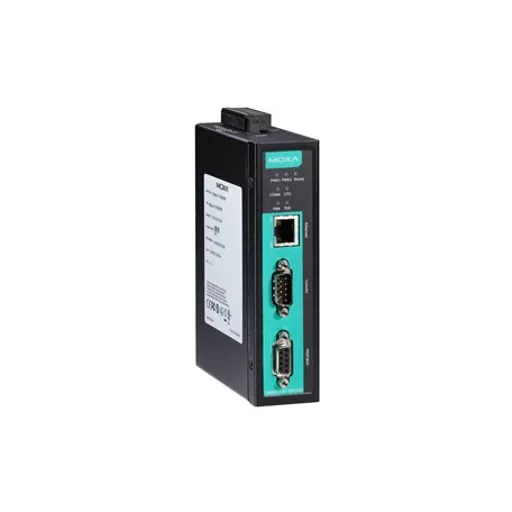

MGate 5101-PBM-MN-T



MGate 5101-PBM-MN-T

Was €1,375.00 Save 6% €1,292.50  Ex VAT Was €1,718.75 Save 6% €1,615.63  Inc VAT

PRE-ORDER

- +

This product is currently out of stock. Your item will be shipped when it is back in stock.

DELIVERY CUTOFF TIME REMAINING:

- - : - - : - -


Industrial PROFIBUS to Modbus TCP Gateway – 1-Port Master, Wide Temperature, Dual Power Input

Enhance your industrial automation reliability and simplify network integration with our rugged 1-port PROFIBUS Master to Modbus TCP Gateway. Designed for demanding environments, this protocol converter seamlessly connects PROFIBUS DP networks with Modbus TCP systems, enabling efficient communication between legacy equipment and modern control networks. Ideal for factory automation, process control, and other industrial applications, this gateway ensures robust performance, easy configuration, and high cybersecurity standards.

Key Features

  • Seamless protocol conversion between PROFIBUS and Modbus TCP for streamlined industrial network integration
  • Supports PROFIBUS DP V1 master functionality for direct control of PROFIBUS slave devices
  • Compatible with Modbus TCP client and server modes for versatile deployment
  • Automatic scanning of PROFIBUS devices with intuitive configuration tools
  • Web-based graphical user interface for real-time I/O data visualization and monitoring
  • Integrated traffic monitoring and diagnostic tools for fast, easy troubleshooting
  • Status monitoring and fault protection features ensure system stability and simplified maintenance
  • Dual DC power inputs (12 to 48 VDC) and 1 relay output increase reliability and system uptime
  • Reliable performance in extreme environments with -40 to 75°C wide operating temperature range
  • 2 kV isolation protection on serial port safeguards against electrical surges and interference
  • Built-in IEC 62443-compliant cybersecurity features for enhanced industrial network security

Industrial-Grade Design for Mission-Critical Applications

This PROFIBUS to Modbus TCP gateway is built to withstand harsh industrial settings, offering extended operating temperature support, redundant power design, and advanced security protocols. Whether used in manufacturing plants, power utilities, or transportation systems, it delivers dependable protocol communication and high system availability round-the-clock.

Upgrade your industrial networks with a future-ready solution designed to bridge communication gaps and increase automation efficiency.

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1 (auto MDI/MDI-X connection)

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Industrial Protocols

    • Modbus TCP Client (Master)
      Modbus TCP Server (Slave)

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Device Search Utility (DSU)
      MGate Manager
      Telnet Console

  • Management

    • ARP
      DHCP Client
      DNS
      HTTP
      HTTPS
      SMTP
      SNMP Trap
      SNMPv1/v2c/v3
      TCP/IP
      Telnet
      SSH
      UDP
      NTP Client

  • MIB

    • RFC1213, RFC1317

  • Time Management

    • NTP Client
Security Functions

  • Authentication

    • Local database

  • Encryption

    • HTTPS
      AES-128
      AES-256
      SHA-256

  • Security Protocols

    • SNMPv3
      SNMPv2c Trap
      HTTPS (TLS 1.3)
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200, n, 8, 1)
Serial Software Features

  • Configuration Options

    • Serial Console

  • Industrial Protocols

    • PROFIBUS DP-V1 Master
Modbus TCP

  • Mode

    • Client (Master), Server (Slave)

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    • 16

  • Max. No. of Server Connections

    • 32

  • Max. No. of Commands

    • 100

  • Input Data Size

    • 1536 bytes

  • Output Data Size

    • 1536 bytes
PROFIBUS Interface

  • Industrial Protocols

    • PROFIBUS DP

  • No. of Ports

    • 1

  • Connector

    • DB9 female

  • Signals

    • PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

  • Baudrate

    • 9600 bps to 12 Mbps

  • Isolation

    • 2 kV (built-in)
PROFIBUS

  • Mode

    • DP-V1 Master

  • Input Data Size

    • 1536 bytes

  • Output Data Size

    • 1536 bytes
Power Parameters

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • 365 mA @ 12 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal
Relays

  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

  • Weight

    • 500 g (1.10 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF

  • Safety

    • IEC 60950-1
      UL 60950-1
      EN 62368-1

  • Hazardous Locations

    • ATEX
      Class I Division 2
      IECEx

  • Freefall

    • IEC 60068-2-32

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64
MTBF

  • Time

    • 1,082,881 hrs

  • Standards

    • Telcordia SR332
Warranty
