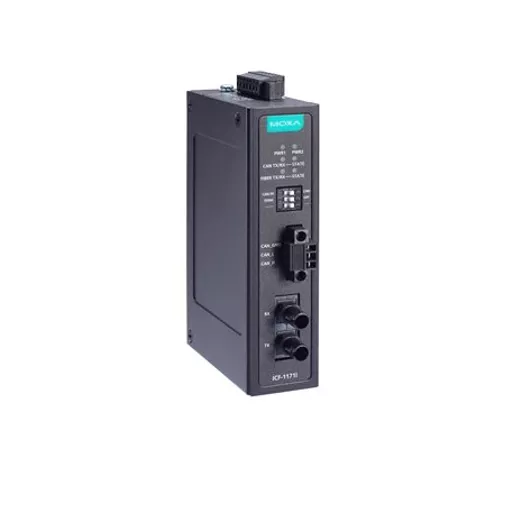

ICF-1171I-M-ST



ICF-1171I-M-ST

Was €417.10 Save 6% €392.07  Ex VAT Was €521.38 Save 6% €490.09  Inc VAT

PRE-ORDER

- +

This product is currently out of stock. Your item will be shipped when it is back in stock.

DELIVERY CUTOFF TIME REMAINING:

- - : - - : - -

Lead Time: 8~12W



Industrial CAN-to-Fiber Converter – Extend CAN Networks Up to 40 km

Enhance the performance and reliability of your industrial communication systems with our robust industrial CAN-to-fiber converter. Designed to transmit serial CAN data over optical fiber up to 40 kilometers, this converter is ideal for applications requiring long-distance communication and superior electromagnetic interference (EMI) protection. Whether you're upgrading your factory automation system or implementing a reliable distributed control system, this CAN-to-fiber converter ensures stable long-range data communication.

Key Features & Benefits

  • Long-Distance Transmission: Transmits CAN or CAN FD data over fiber optics for distances up to 40 km, ensuring data integrity and EMI immunity.
  • Multi-Protocol Support: Compatible with CAN 2.0A, CAN 2.0B, and high-performance CAN FD; fully compliant with ISO 11898.
  • Flexible Rate Configuration: Supports CAN FD data rates up to 5 Mbps and arbitration rates up to 1 Mbps, with rotary switches for easy setup.
  • Auto Baudrate Detection: For CAN 2.0 networks, it supports auto baudrate to simplify integration into existing installations.
  • Dual Power Redundancy: Equipped with dual power inputs, ensuring uninterrupted operation in critical environments.
  • Wide Temperature Range: Rugged design supports extreme temperatures from -40 to 75°C for harsh industrial environments.
  • Built-in Diagnostics: LEDs provide real-time status monitoring for CAN bus activity, fiber link, and power inputs.
  • Easy Termination Configuration: DIP switch-enabled 120-ohm terminal resistance simplifies network setup.
  • ST Multi-Mode Fiber: Uses standard ST connectors for broad compatibility with industrial fiber networks.

Ideal for Industrial Applications

This industrial-grade CAN-to-fiber media converter is perfect for extending CAN/CAN FD networks in factory automation, process control systems, transportation infrastructure, and any application requiring high-reliability communication over long distances. With its rugged build, versatile protocol support, and flexible configuration, it meets the demanding needs of modern industrial environments.

Serial Interface

  • Optical Fiber

    • 100Base-Fx ports (single-mode/multi-mode ST connector)

  • Optical Fiber

    • Fiber module optical interface Multi-mode Single-mode
      Fiber Data Rate 100Base-Fx
      Fiber Cable Requirements 62.5/125 µm 9/125 µm
      OM1 OS1
      Typical Distance 2 km 40 km
      Wavelength Typical (nm) 1310
      TX Range (nm) 1280 to 1340
      RX Range (nm) 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1

  • Optical Fiber

    • Note: The “typical distance” of a specific fiber transceiver can be computer using Link budget (dB) > Dispersion penalty (dB) + Total link loss (dB).
CAN Interface

  • Isolation

    • 2 kV (built-in)

  • No. of Ports

    • 1

  • Signals

    • CAN_L, CAN_H, CAN Signal GND

  • Terminator

    • N/A, 120 ohms (by DIP)

  • Protocols

    • CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch to select CAN 2.0/CAN FD setting)
Fiber Interface

  • No. of Ports

    • 1

  • Connector

    • Multi-mode ST connector

  • Optical Fiber

    • Single-mode, typical distance 40 km
      Multi-mode, typical distance 2 km
Power Parameters

  • Input Current

    • 188.5 mA (max.)

  • Input Voltage

    • 12 to 48 VDC

  • No. of Power Inputs

    • 2

  • Power Connector

    • Terminal block
Relays

  • Contact Current Rating

    • Resistive load: 1 A @ 30 VDC

  • Pinouts

    • NC, COM, NO
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)

  • Weight

    • 294 g (0.65 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • 0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF

  • International Approval

    • KC

  • Safety

    • UL 62368-1, EN 62368-1

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 2,412,885 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
