CP-168U



CP-168U

Was €183.00 Save 6% €172.02  Ex VAT Was €228.75 Save 6% €215.03  Inc VAT

2 IN STOCK

- +

DELIVERY CUTOFF TIME REMAINING:

- - : - - : - -

Lead Time: 2~4W

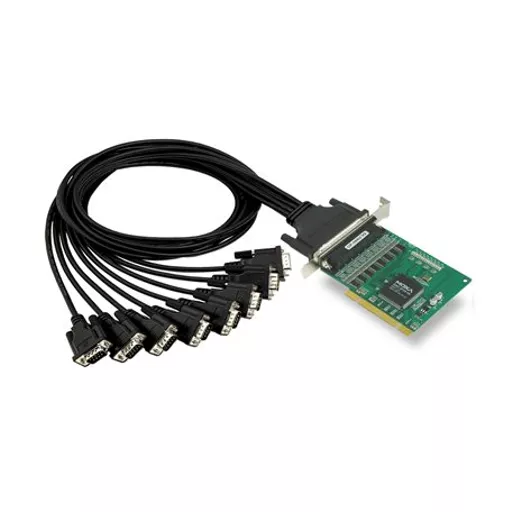

8-Port RS-232 Universal PCI Serial Board – High-Speed, Reliable Connectivity

Upgrade your industrial automation or serial communication setup with this high-performance 8-port RS-232 Universal PCI serial board. Designed for exceptional reliability and speed, this PCI serial card delivers superior data throughput and wide system compatibility, making it ideal for demanding applications in factories, labs, and enterprise environments.

Key Features and Benefits

  • High-Speed Data Transmission: Achieve data throughput of over 700 kbps and a maximum baudrate of 921.6 kbps for fast and efficient communication.
  • Enhanced Performance: Equipped with a 128-byte FIFO and built-in hardware/software flow control for smooth and stable data handling.
  • Universal Compatibility: Supports both 3.3V and 5V PCI and PCI-X bus systems, ensuring seamless integration into a variety of industrial PCs and workstations.
  • Wide OS Support: Comes with drivers for Windows, Linux, and UNIX operating systems, enabling easy installation across a broad range of platforms.
  • Rugged Options Available: Optional wide-temperature model built to withstand harsh environments ranging from -40 to 85°C.
  • Reliable Operation: Standard model supports temperature ranges from 0 to 55°C, perfect for most standard industrial applications.

This 8-port RS-232 PCI serial board is the optimal choice for system integrators and OEMs looking for robust serial connectivity, long-term performance, and versatile deployment options. Whether you're building a multi-port serial communication hub or upgrading legacy systems, this board offers the reliability and speed you need.

Serial Interface

  • Comm. Controller

    • MU860 (16C550C compatible)

  • Bus

    • 32-bit Universal PCI

  • Connector

    • DB62 female

  • FIFO

    • 128 bytes

  • Max. No. of Boards per PC

    • 8

  • No. of Ports

    • 8

  • Serial Standards

    • RS-232

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None, RTS/CTS, XON/XOFF
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features

  • Windows Drivers

    • DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    • Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    • QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Power Parameters

  • Input Current

    • 180 mA @ 5 VDC
Physical Characteristics

  • Dimensions

    • 82 x 120 mm (3.22 x 4.72 in)
LED Interface

  • LED Indicators

    • Built-in Tx, Rx LEDs for each port
Environmental Limits

  • Operating Temperature

    • 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class B

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV

  • International Approval

    • KC
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 280,854 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
