CP-132EL-DB9M



CP-132EL-DB9M

Was €140.40 Save 6% €131.98  Ex VAT Was €175.50 Save 6% €164.98  Inc VAT

PRE-ORDER

- +

This product is currently out of stock. Your item will be shipped when it is back in stock.

DELIVERY CUTOFF TIME REMAINING:

- - : - - : - -

Lead Time: 2~4W

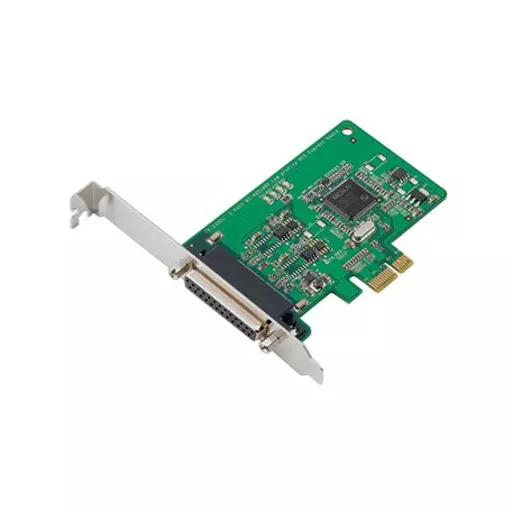

2-Port RS-422/485 Low-Profile PCI Express Serial Card with DB9 Cable

Upgrade your industrial or embedded system with this high-performance 2-port RS-422/485 PCI Express serial board. Designed for reliable and fast serial communication, this low-profile PCIe x1 card is ideal for compact PCs and systems requiring robust data transmission and seamless integration with various operating environments.

Reliable High-Speed Serial Communication

Engineered for demanding applications, this PCI Express serial card supports data transfer rates of up to 921.6 kbps, ensuring fast and efficient communication for industrial automation, point-of-sale systems, and embedded setups.

Compact Design with Broad Compatibility

The low-profile form factor makes it perfect for small PCs and space-constrained enclosures. It includes a DB9 male cable for easy connectivity and supports a wide range of operating systems including Windows, Linux, and UNIX for hassle-free installation and integration.

Key Features

  • Compliant with PCI Express 1.0 for high-performance connectivity
  • Maximum baudrate of 921.6 kbps for quick and stable data transmission
  • 128-byte FIFO buffers with on-chip software flow control to minimize data loss
  • Low-profile PCIe x1 card suitable for small form-factor desktops and industrial PCs
  • Supports multiple operating systems including Windows, Linux, and UNIX
  • Built-in LEDs and user-friendly management software for easy maintenance and diagnostics

Ideal for Industrial and Embedded Applications

This 2-port RS-422/485 serial expansion card is the perfect solution for adding serial connectivity to compact systems. Whether you're building a new system or upgrading an existing one, it delivers high reliability, wide compatibility, and efficient communication for a range of serial devices.

Serial Interface

  • Comm. Controller

    • 16C550C compatible

  • Bus

    • PCI Express 1.0

  • Connector

    • DB25 female

  • FIFO

    • 128 bytes

  • Max. No. of Boards per PC

    • 8

  • No. of Ports

    • 2

  • Serial Standards

    • RS-422, RS-485

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None, XON/XOFF
Serial Signals

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features

  • Windows Drivers

    • DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    • Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    • Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6
Power Parameters

  • Input Current

    • 548 mA @ 3.3 VDC
Physical Characteristics

  • Dimensions

    • 67.21 x 101.97 mm (2.65 x 4.08 in)
LED Interface

  • LED Indicators

    • Built-in Tx, Rx LEDs for each port
Environmental Limits

  • Operating Temperature

    • 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class B

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 4,147,133 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
